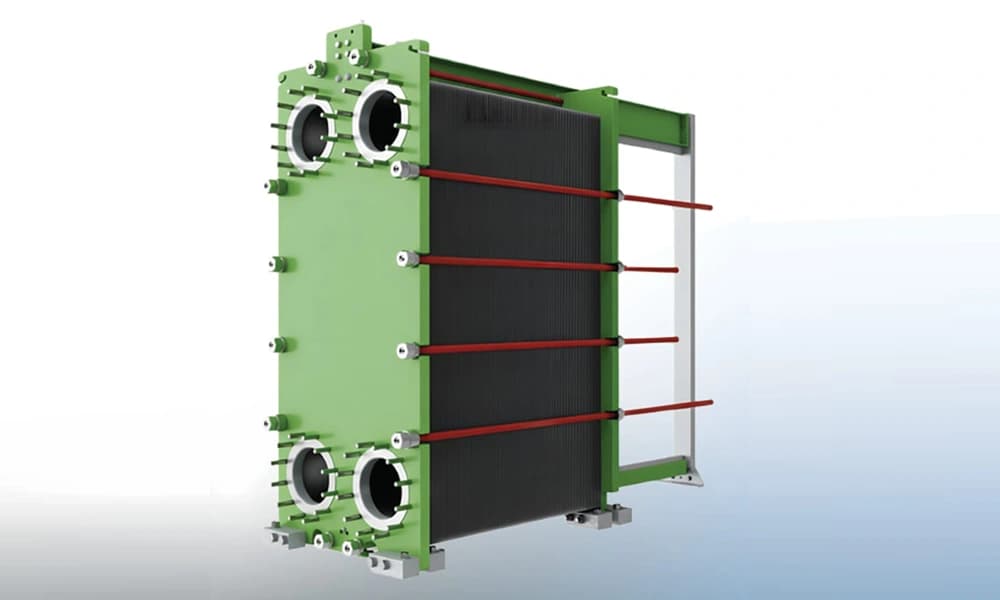

Plate & Frame Heat Exchanger

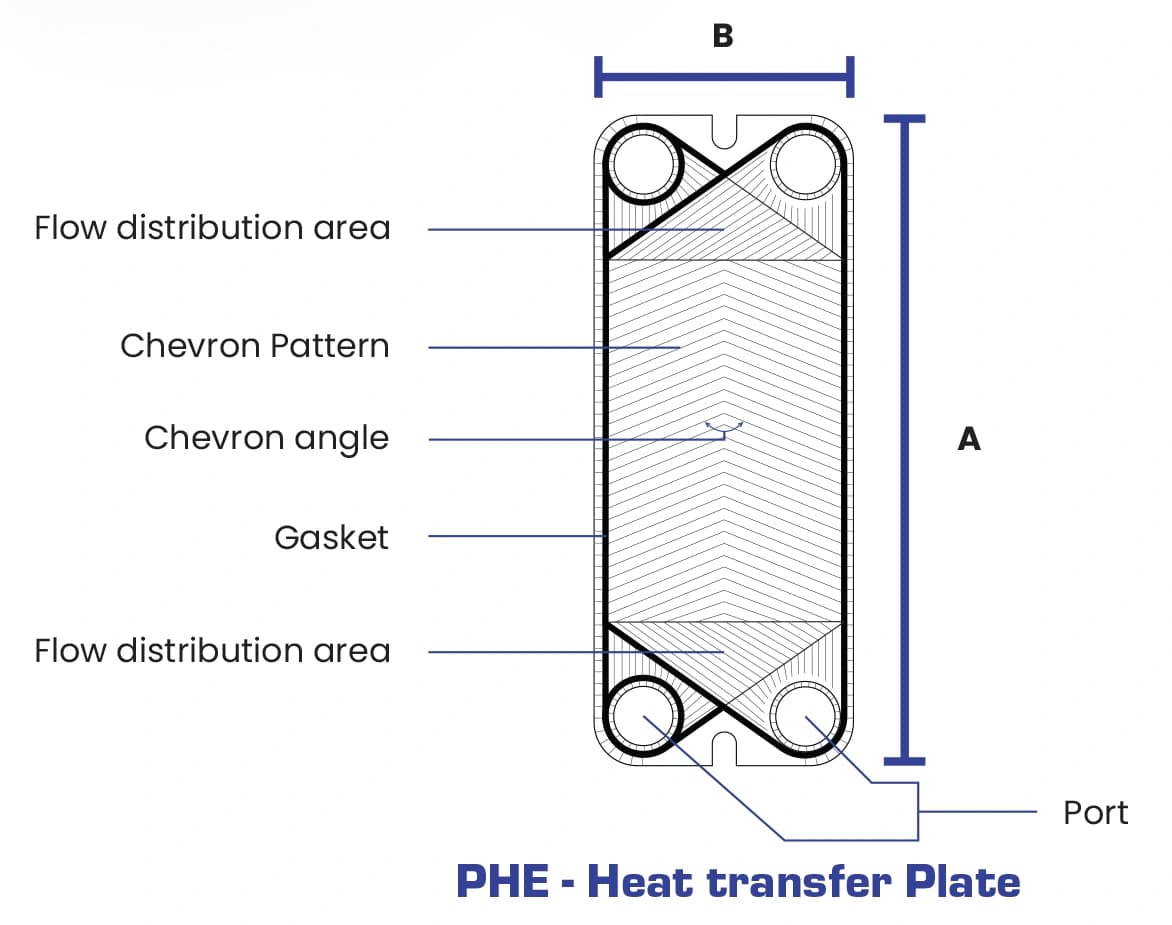

The system consists of a series of precision-pressed corrugated plates arranged in a frame, creating highly turbulent flow paths that maximize heat transfer while minimizing fouling.
The chevron plate pattern ensures uniform flow distribution and enhanced heat transfer coefficients, allowing efficient operation even with small temperature approaches. The modular plate design enables easy expansion or capacity modification by simply adding or removing plates, making it a future-ready solution for evolving process requirements.
Designed for demanding industrial environments, Precision PHEs support a wide range of plate materials (SS 304, SS 316, SMO 254, Hastelloy C-276, Titanium Gr 1 / Gr 11) and gasket materials (NBR, EPDM, Viton), ensuring compatibility with corrosive and high-purity fluids. Units are capable of operating up to 180 °C and 30 bar(g).

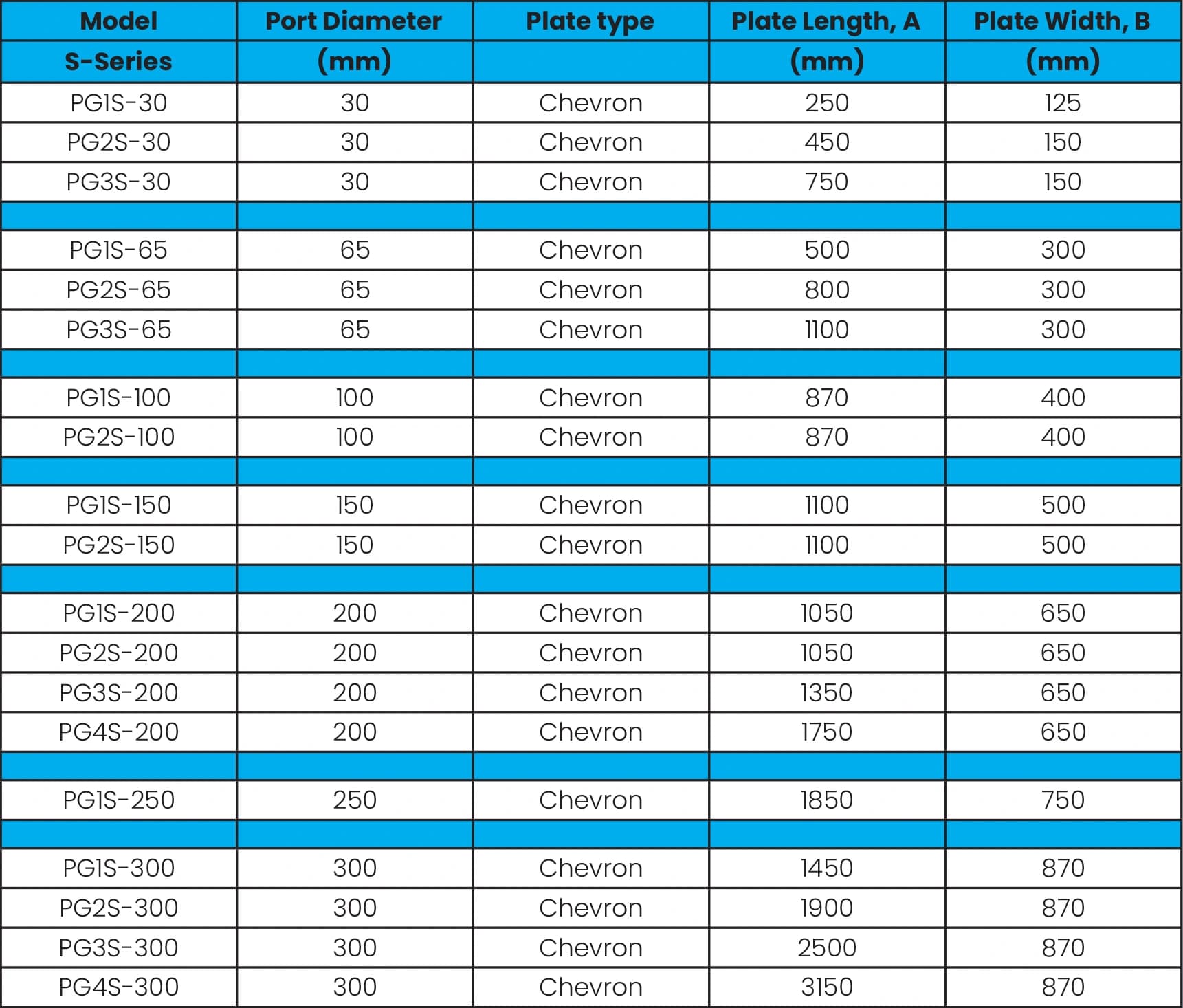

Technical Specification

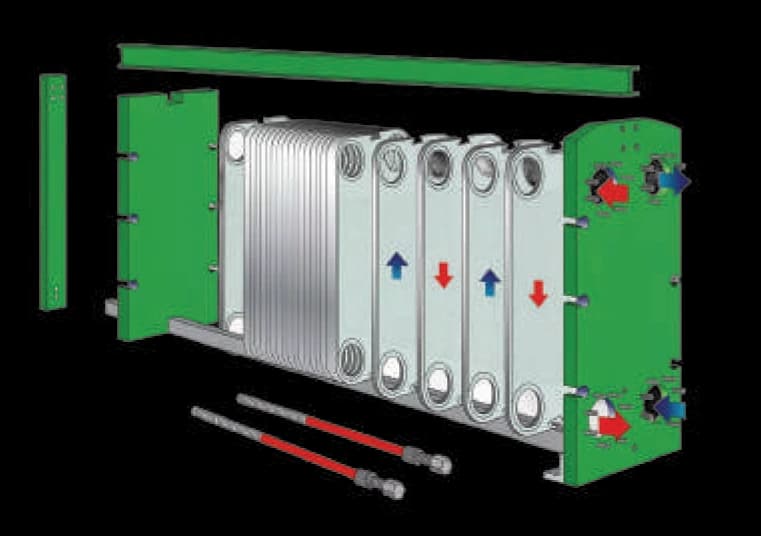

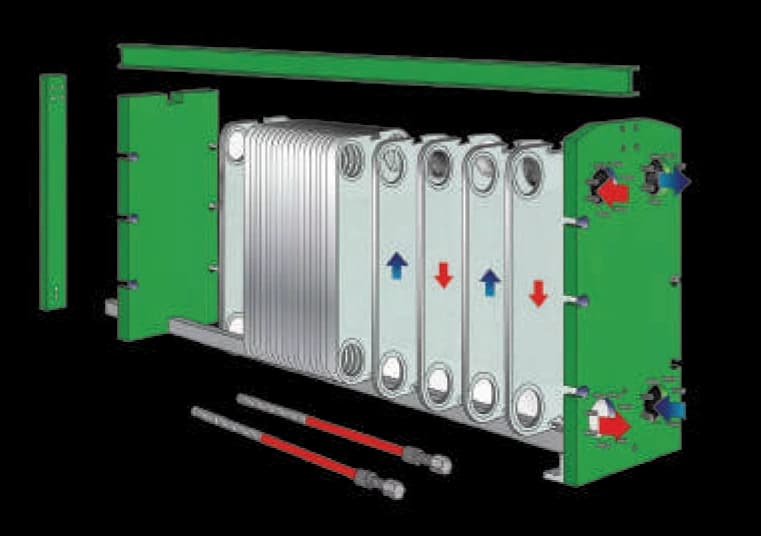

Exploded view of PHE

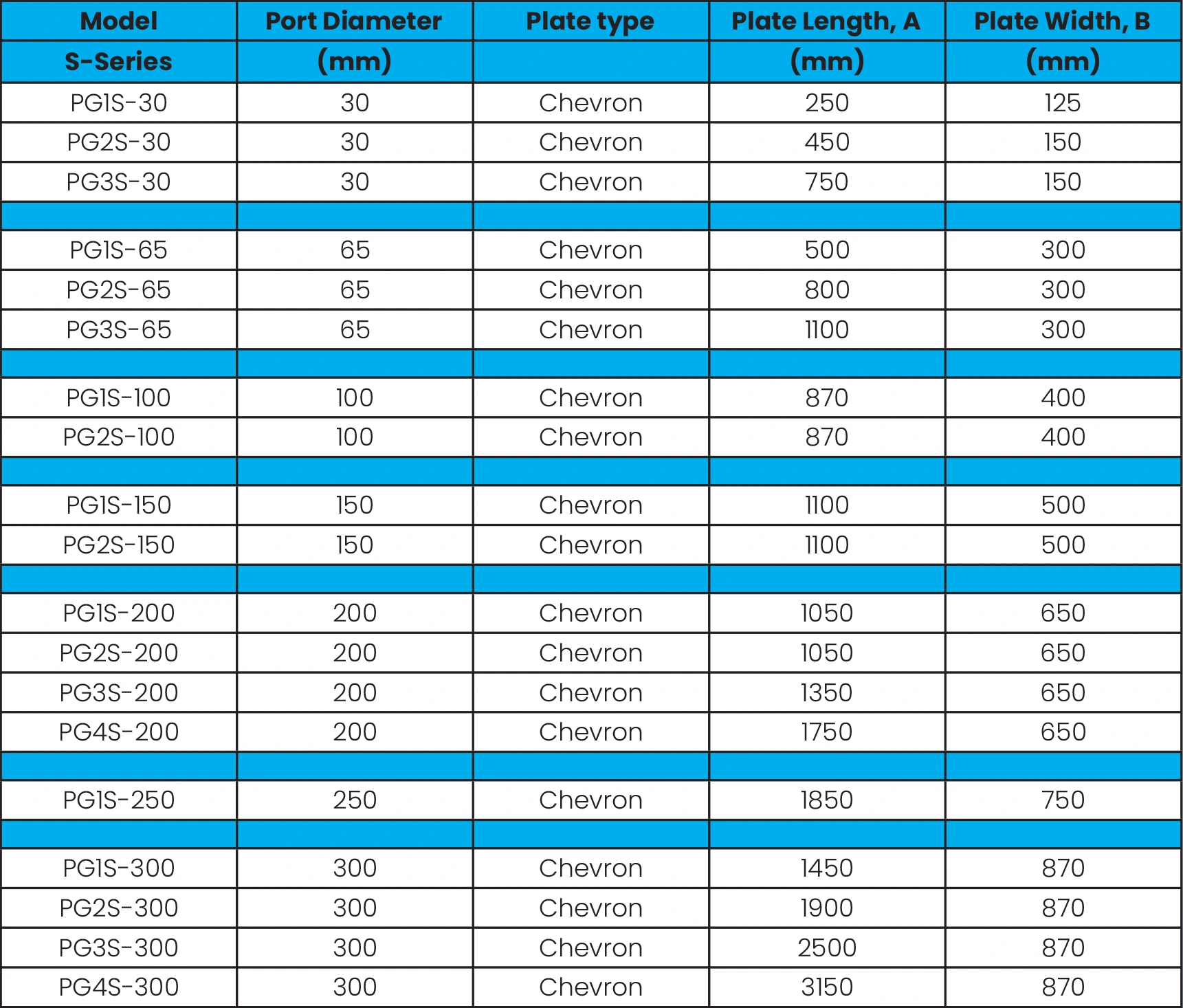

Technical Parameters
- Port Sizes: 50 mm - 500 mm
- Plate Materials: SS 304, SS 316, SMO 254, Hastelloy C-276, Titanium Gr 1 / Gr 11
- Gasket Materials: NBR, EPDM, Viton
- Maximum Operating Parameters: 180°C, 30 bar g
Precision PHE — Built for Industrial Excellence
Modern
Tailored for today’s industry
Efficient
Best-in-class heat transfer
Reliable
Consistent uptime, reduced fouling
Serviceable
Fast cleaning and maintenance
Expandable
Add or remove plates anytime
